Push Back Racking

Ideal for storing large batches of the same SKUs.

Maximise Efficiency with Our Innovative Push Back Racking System

Transform your warehouse operations with our push back racking system, designed for optimal storage efficiency. This versatile solution allows for dense storage capabilities, accommodating up to six pallets deep and effectively utilising vertical space. With the flexibility to store different SKUs in each channel, it caters to diverse inventory needs.

The push back racking dimensions are tailored to fit various warehouse layouts, ensuring maximum use of space while providing a low-damage environment; fork trucks never enter the racking aisles, significantly reducing the risk of accidents compared to traditional drive-in systems. The pick face remains constantly full, enabling shorter loading and unloading times, making it an ideal choice for loading bays or hard-to-reach areas.

Perfect for cold storage applications, this system enhances overall operational efficiency.

Explore our double deep pallet racking solutions for even more storage options that optimise your warehouse layout.

Elevate your storage capabilities today—contact us for a tailored solution that meets your unique warehouse needs!

The high-density push back racking system facilitates direct access to substantial quantities of items sharing the same SKUs, offering storage depths of two to six pallets per pallet.

The gravity-fed operation ensures the pick face is constantly filled, arranged on a First In, Last Out basis (FILO).

This system is ideal for storing medium-turnover products, with two or more pallets per SKU.

Push back racking dimensions are designed to optimise vertical space and accommodate varying pallet sizes. How it works:

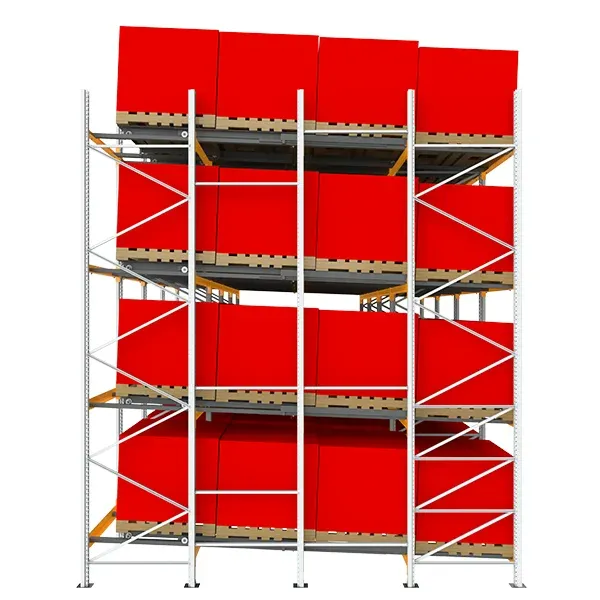

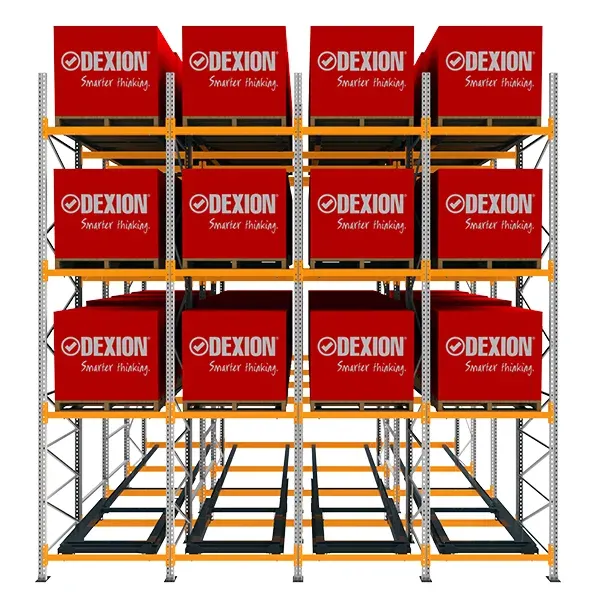

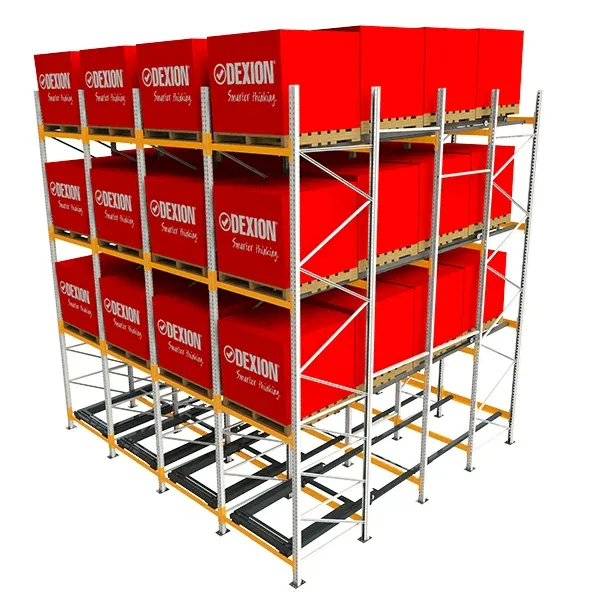

Pallets are loaded on top of a sliding cart and pushed deeper into the rack when the next pallet is loaded. Up to six pallets can be stored per channel. At each level, pallets are placed on a set of trolleys that are pushed along rails.

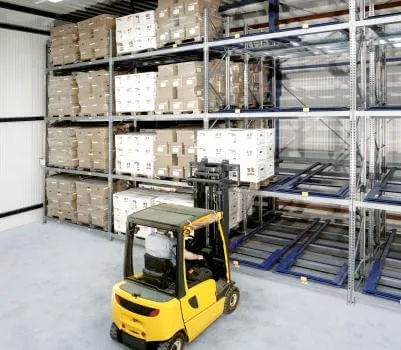

During unloading, the front pallet is removed by the fork truck, and as it is taken away, the next pallet rolls forward along a set of rails.

Product Features and Benefits

Allows very dense storage capabilities up to 6 pallets deep which optimises warehouse vertical space.
Each channel can store a different SKU which makes this a versatile system.
A low damage environment as fork trucks never enter the racking aisles lowering risk of damage and accidents, compared to drive in racking systems.
Pick face remains constantly full enabling shorter loading and unloading times.
Perfect solution for loading bays or hard-to-reach areas within a warehouse ensuring maximum use of space.
Frequently used for cold storage applications.

Spec Sheet

Warranty

Ready to make a change?

Schedule a call with our representative today.
