Compactus®

Optimise your floorspace with Compactus®, exclusive to Dexion. Mounted on mobile bases and runners, Compactus® is available in three configurations – manual, mechanically assisted and motorised.

.

Freetrack 2

Lightweight solution for your filing needs

Freetrack 2Freetrack 2
Freetrack 2 -2Freetrack 2 -2
Freetrack 2 -3Freetrack 2 -3
Freetrack 2 -4Freetrack 2 -4
Freetrack 2 -5Freetrack 2 -5
Freetrack 2 -6Freetrack 2 -6

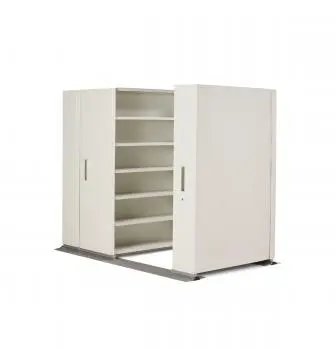

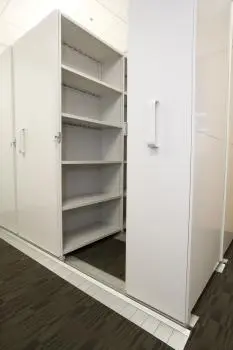

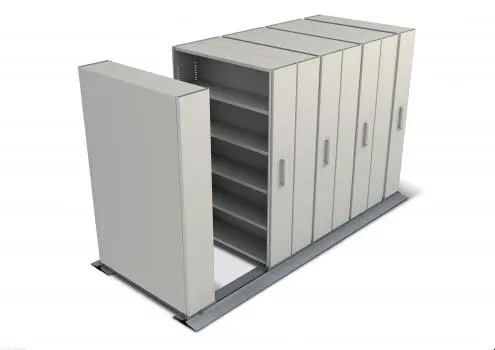

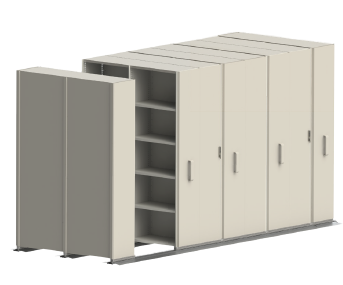

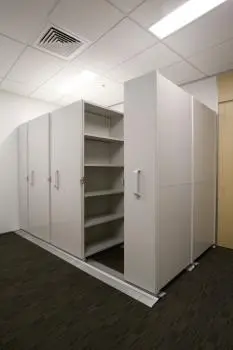

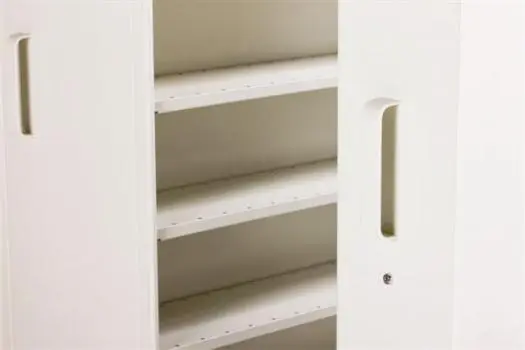

Freetrack 2

Lightweight solution for your filing needs

An ideal lightweight system for just about any storage and filing application. With no floor-fixing required, our solution reduces the danger of operator strain, while allowing block loads of up to 1,000kg effortlessly.

  • Robust aluminium anodised components provides strength and a streamline finish that constitutes to a modern attractive appearance.
  • New track and runner design strengthens and enhance shelving mobility.

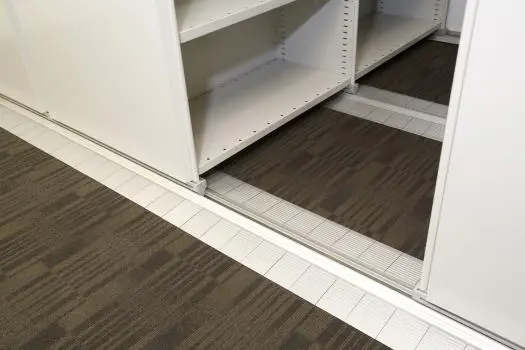

  • Low profile track incorporates pivoting ramps that follow the floor contour to reduce trip hazards and provide trolley and wheelchair access.
  • New track is far more substantial in mass; a more rigid product with less levelling plates required.
  • Universal designed runner allows various double-sided bay combinations.
  • Crinolin steel strips provide hard wearing runner surface for smooth operating.
  • Design the perfect solution with unlimited base lengths.
  • A lighter weight system reduces operator strain and loads imposed on the floor.
  • Tracks do not require fixing eliminating any damage to floor coverings.
  • Track and runner combinations add only 65mm to the overall shelving height.
  • GECA Certified.
  • 10 Year Warranty – Conditions apply.

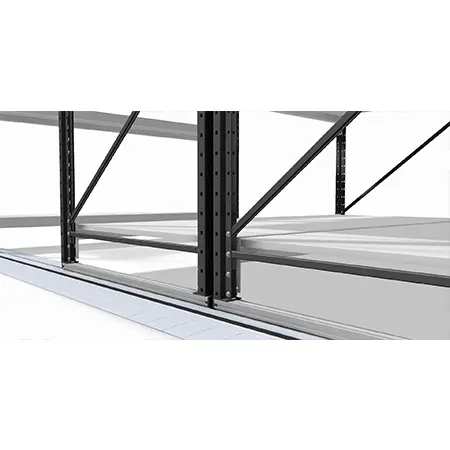

Freetrack 2 Longspan

Our most versatile storage system

Take advantage of our most versatile storage system. Mount your Ultima Longspan 2 shelving on the Freetrack 2 track and runner system for ultimate flexibility in storing archives or bulky items. With no floor fixing required, it’s simple to assemble with no damage to existing floors.

  • Versatile storage solution.
  • Designed for large bulkier items.
  • Low profile track incorporates our patented pivoting ramps that follow the floor contour to reduce trip hazards, and trolley and wheelchair access.
  • Universal designed runner allows various double-sided bay combinations.
  • Crinoline within the track steel strips provide a hard wearing runner surface for smooth operating.
  • A lighter weight system reduces operator strain and loads imposed on the floor.
  • Tracks do not require fixing for ease of relocation or reconfiguration, eliminating any damage to floor coverings.
  • Track and runner combinations add only 65mm to the overall shelving height.

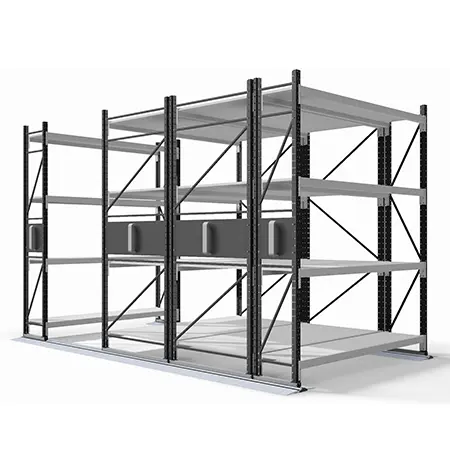

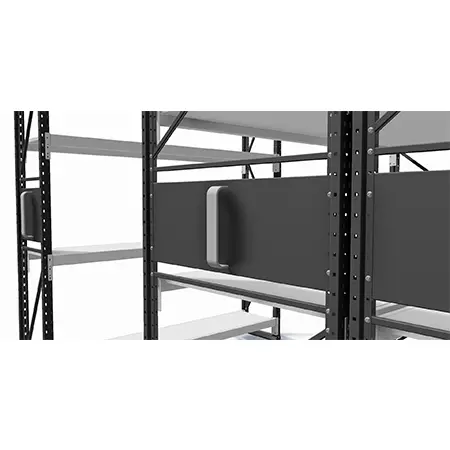

Freetrack 2 Longspan

Our most versatile storage system

Freetrack 2 LongspanFreetrack 2 Longspan
Freetrack 2 Longspan 2Freetrack 2 Longspan 2
Freetrack 2 Longspan 3Freetrack 2 Longspan 3

Freetrack 2 Compactus® with Dynamic Locking

Take advantage of comprehensive security and access

Freetrack 2 Compactus With Dynamic LockingFreetrack 2 Compactus With Dynamic Locking

Freetrack 2 Compactus® with Dynamic Locking

Take advantage of comprehensive security and access

Take advantage of one of the most comprehensive security and access options on the market with the Dexion Freetrack 2 Compactus®, the system that revolutionises light weight storage solutions. The Dexion Freetrack 2 Compactus offers three locking levels, with specific connectivity, security and functionality. Our Bronze level latch locks are standard.

  • Robust aluminium anodised track components provides strength and a streamline finish that constitutes to a modern attractive appearance.
  • Design the perfect solution with unlimited base lengths.
  • A lighter weight system reduces operator strain and loads imposed on the floor.
  • Tracks do not require fixing eliminating any damage to floor coverings.
  • Track and runner combinations add only 65mm to the overall shelving height.
  • Dynamic locking options with varying levels of connectivity, security and functionality.

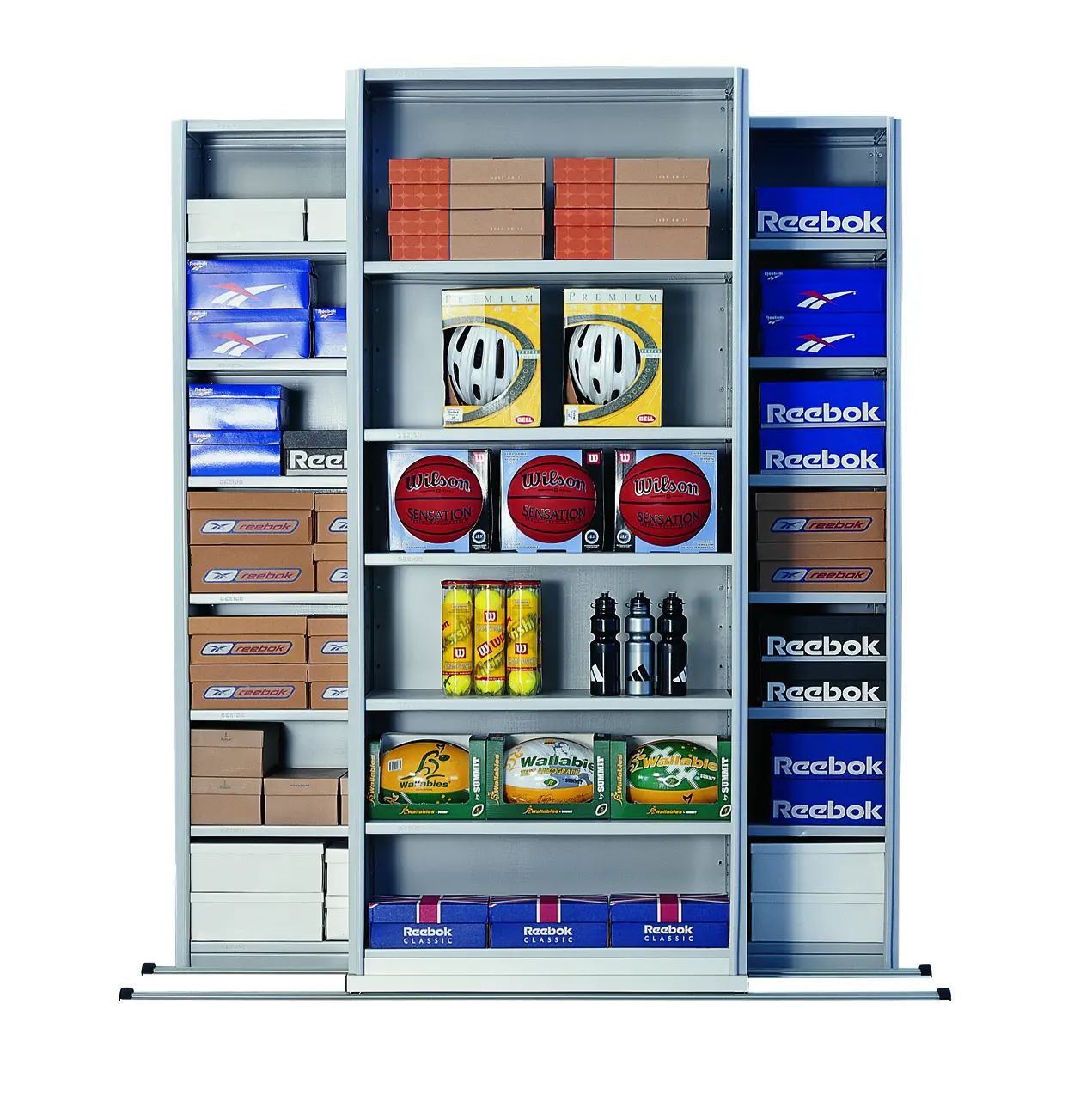

Side2Side 2 Compactus®

Optimise those hard-to-use areas for storage

Optimise those hard-to-use areas for storage with Side2Side 2 Compactus®. It’s an ideal way to transform under-utilised areas like alcoves, improving your storage efficiency. A row of mobile shelving sits in front of a row of static shelving, eliminating the need for permanent aisles. Stored items are easily accessed from the front.

  • Create an extremely efficient use of unconventional storage areas by mounting Ultima CI-80 shelving onto the attractive Side2side 2 track and runner system.
  • More accessible bays provide multiple ‘picking faces’, giving faster access for more operators to more stored items.
  • The innovative low profile track design provides great strength and enhanced mobility for the side to side base runners.
  • Attractive clip on track ramps further reduce trip hazards when accessing rear bays.
  • The pivoting ramps allow a seamless transition between the flooring material and track.
  • The unique track based anti-tilt mechanism secures all shelving, further enhancing operator safety.
  • Easily upgrade from Dexion Ultima CI-80 shelving system. Fast and efficient access.
  • 10 Year Warranty – Conditions apply

Side2Side 2 Compactus®

Optimise those hard-to-use areas for storage

Side2side 2 CompactusSide2side 2 Compactus

Mekdrive 3

An ultralight cost-efficient mechanical filing and storage system

Mekdrive 3Mekdrive 3
Mekdrive CompactusMekdrive Compactus
Mekdrive 3 - 3Mekdrive 3 - 3
Mekdrive 3 - 4Mekdrive 3 - 4
Mekdrive 3 - 5Mekdrive 3 - 5

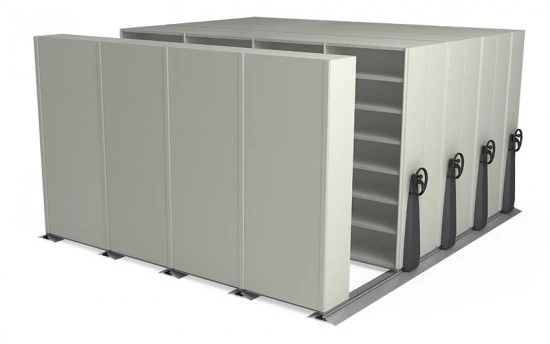

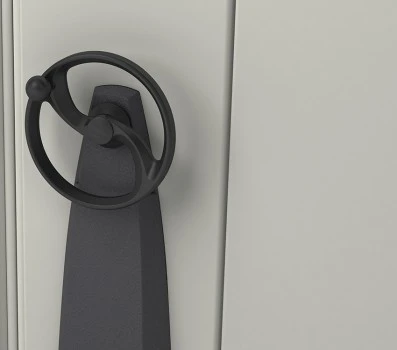

Mekdrive 3

An ultralight cost-efficient mechanical filing and storage system

The latest iteration of filing and storage systems introduces a groundbreaking approach to efficiency and design. With a remarkable increase in storage capacity, now boasting up to 78% more space, the system’s width has expanded from 2700mm to 4800mm. Enhancements include a modern and unique stylised hand-wheel with integrated spinner handle, providing safer and easier operation.

Our solution is the lightest mechanically assisted mobile storage system on the market, it prioritises minimising floor loads, a crucial factor in commercial office buildings. The enhanced system width, now spanning four shelving bays, marks a significant advancement, a feat previously only attainable with fixed-track systems. This innovative approach not only addresses practical considerations but also sets a new standard in adaptability and space optimization within office environments.

  • The Mekdrive 3 Compactus® delivers a market leading system width, which redefines non fixed-track Compactus® capability. It does not require fixing into the floor, eliminating any permanent damage and allowing for cost effective relocation and reconfiguration of the system.
  • Available in up to four shelving bays in widths with a maximum widths of 4800mm, offering a total block load capacity (limit) of 6,000kg, over five tracks.

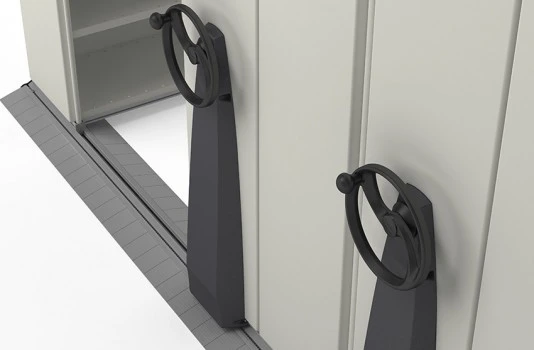

  • The Mekdrive 3 has an optional longer pivoting ramp allowing the tracks to be levelled to a height of 100mm, catering for wider system widths and can be installed over varying floor contours.
  • The clip-on track ramps further reduce trip hazards increasing safety and allows for the movement of trolleys and wheelchairs between the shelving bays.
  • There are a variety of locking options available providing additional security to stored documents.
  • The Mekdrive3 track chain has a zinc plated finish providing a low maintenance solution with easy tensioning that requires no lubrication, keeping a clean look.
  • The low profile track design, effectively lowers the overall height of the system to keep all storage levels within easy reach.
  • The Mekdrive 3 Compactus® has multiple track configurations for better distribution of floor loads. The unique track anti-tilt mechanism secures all shelving, further enhancing operator safety. It has a narrower track at 105mm, which offers less protrusion outside the shelving width.

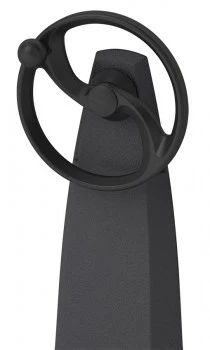

  • The Mekdrive 3 hand-wheel can be retro-fitted to Mekdrive 1 and 2 systems with a simple modification.
  • GECA Certified.
  • Dexion offers a 10 year warranty on this product.

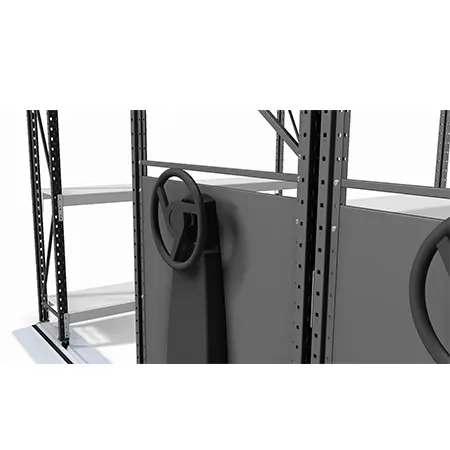

Mekdrive 3 Longspan

Light and easy mechanically assisted mobile storage

With a strong emphasis on safety, ease of use, and an impressively lightweight design, this mechanical filing and storage system set a benchmark for cost-efficiency in its category.

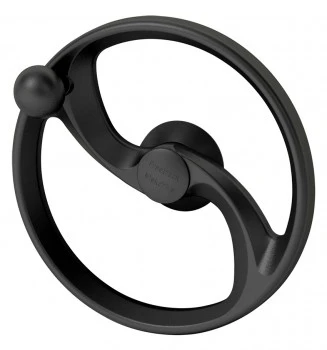

Its stylish hand-wheel with an integrated spinner handle makes it safer and more ergonomic to use, while the robust chain drive moves up to 6,000 kg block loads effortlessly, reducing operator strain. The system also comes with unique patented pivoting ramps which can accommodate a range of floor contours.

Couple with Ultima Longspan 2 shelving for a seamless storage solution. It doesn’t need floor fixing or timber in-fills, so there’s no damage to the floor. If you’re using the MekDrive 3 system with a hand operated unit, it’s easy to upgrade.

  • Versatile storage solution.
  • Designed for large bulkier items.
  • Low profile track design incorporates our patented pivoting ramps that follow the floor contour to reduce trip hazards and improve trolley and wheelchair access.
  • Universal runner design allows various double-sided bay combinations.
  • Crinlon steel strips within the track provide a hard wearing surface for the load wheels of the runner.
  • The lightweight system reduces operator strain and loads imposed on the floor.
  • Tracks are not fixed to the floor which allows easy relocation or reconfiguration and eliminates any damage to floor coverings.
  • Track and runner combinations add only 65mm to the overall shelving height.
  • The unique track based anti-tilt mechanism secures all shelving, further enhancing operator safety.
  • Available in bay clearances of up to 2400mm wide and 1200mm deep.
  • Storage levels adjustable in 50mm increments.

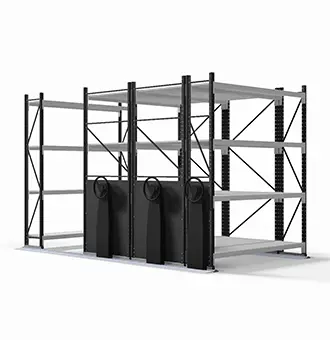

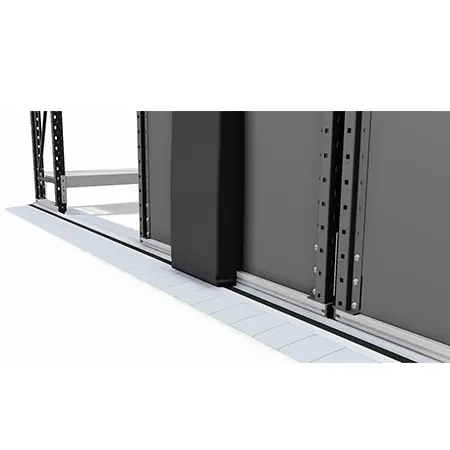

Mekdrive 3 Longspan

Light and easy mechanically assisted mobile storage

Mekdrive 3 LongspanMekdrive 3 Longspan
Mekdrive 3 Longspan 2Mekdrive 3 Longspan 2
Mekdrive 3 Longspan 3Mekdrive 3 Longspan 3

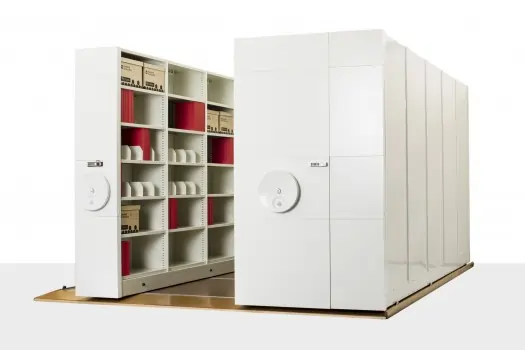

MaxiDRIVE

The ultimate solution for large volume contents, heavy or bulky items

MaxiDRIVE-Compactus_1MaxiDRIVE-Compactus_1
MaxiDRIVE-Compactus_9MaxiDRIVE-Compactus_9
MaxiDRIVE-Compactus_10MaxiDRIVE-Compactus_10
MaxiDRIVE-Compactus_11MaxiDRIVE-Compactus_11

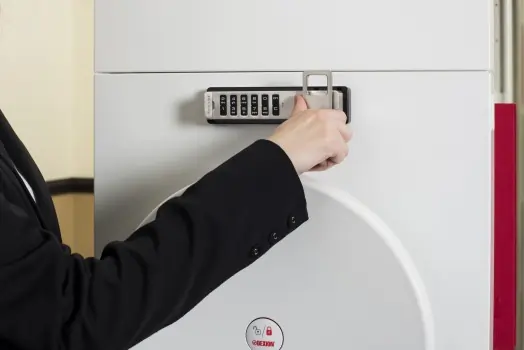

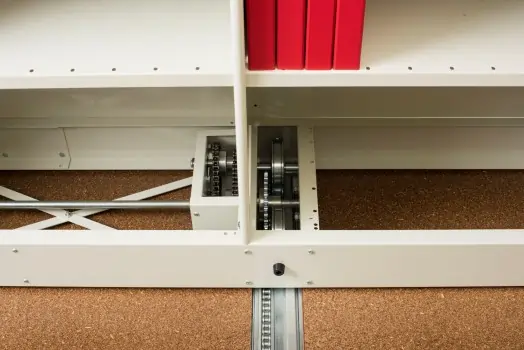

MaxiDRIVE

The ultimate solution for large volume contents, heavy or bulky items

Makes storing large volumes of contents, or heavy or bulky items easy. Capable of carriage lengths of up to 14,440 mm as standard, you’ll enjoy highly efficient storage density in a mechanically operated system. Versatile and robust, applications extend to any office item, back-of-house retail, library, warehouse or archive.

  • Mechanically assisted operation that reduces operator strain with loads up to 1000kg per metre, reducing the risk of OH&S.
  • Carriage lengths which can be designed up to 14,400mm long (nominal) as standard ensuring maximum storage capacity within your available floor area.
  • Two gear reduction ratios available to tailor operation to the weight load of your contents.

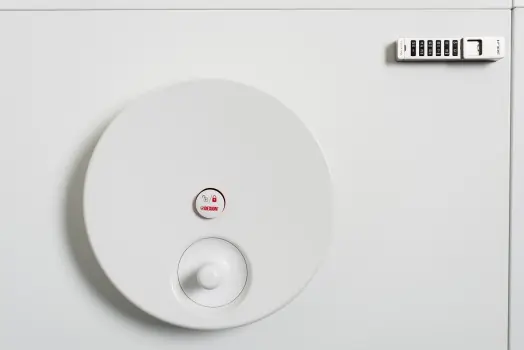

  • Unique handwheel disc design delivers users with:
    – a ‘Hub Lock’ on each handwheel for superior user safety especially over traditional spoke designs,
    – an ergonomic handgrip on the outer edge and spinner handle for user friendly operation.
  • New stylish finishing panel design provides;
    – a square edge providing a flush finish,
    – limits on the gap between opposing shelving bays for enhanced security,
    – ease of access for service and maintenance,
    – an option for high security, dual cam aisle locking to secure two (2) opposing carriages to each other, allowing separate security for selected user groups.
  • Improved track design boasts an ‘anti-tilt’ mechanism located in the track and structural infill floors between tracks with a ‘walk-up’ ramp at the entry to aisles provide a safe and solid working platform which all reduces trip hazards and allows easy access for trolley’s or wheelchairs.
  • Easily configured by your local Dexion representative to maximise the storage capacity of your valuable floor space.

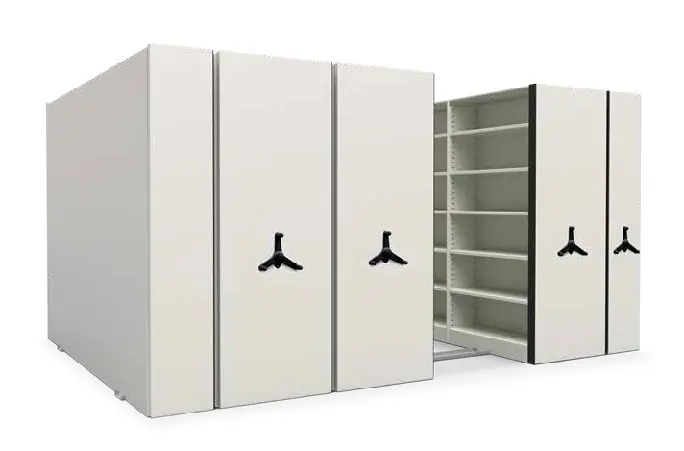

Mech Assist

Optimise your storage space with a smooth operation

Optimise your storage space with Australia’s safest, smoothest mechanically assisted Compactus®. Enjoy maximum storage efficiency at your fingertips, thanks to the smart inbuilt technology which allows you to select a drive ratio to suit the load. With market leading safety features and the ability to upgrade to a full powered operation, Mech Assist is a smart choice.

  • The Mech Assist carriages can be designed to take shelving, racking, cabinets, even non Dexion products can be fitted to the Mech Assist carriages (ideal for re-use of existing shelving components).
  • Available in standard lengths up to 13.7m. Greater carriage lengths are possible, depending on system load factors.
  • Maximum load carrying capacity of 1,500 kg per linear metre.
  • Standard carriages up to 1200mm depth (deeper carriages can be designed on request).
  • The unique in-track anti-tilt safety mechanism is superior to conventional overhead mechanisms and eliminates obtrusive overhead bars. Anti-tilt devices are engineered to comply with all seismic requirements, providing an extra measure of system stability and safety – even in areas prone to earthquakes.
  • To assure the smoothest possible operation, an integrated chain tensioner can be easily adjusted to fine tune the carriage drive. This operation only takes a few seconds as a minor service adjustment without disassembly of the system.
  • Select from three drive ratios. By appropriately matching the system drive ratio to the load, operation becomes smooth and effortless. Very little force or exertion is needed to open an aisle.
  • By adjusting track size, spacing and orientation, floor loads can be optimally distributed at practical bearing points.
  • All tracks are fully supported and grouted to evenly distribute system weight.
  • Carriage wheels and tracks are machine tooled for precision and tolerance to ensure maximum strength and system life.
  • Welded-steel carriage sections enhance the Compactus® alignment and reduce binding, racking and misalignment of carriage and shelving.
  • The three spoked handle is moulded from a composite of 33% fiberglass and nylon will not bend or rust.
  • Laminate end panels as provided as standard and can be selected from a range of colours.
  • Options available: Synchronized Drive System, Safety Lock, Hub Lock, One-Piece Track System, Mechanical Safety Sweep.
  • Please refer to Spec Sheet for detailed information on the options available.

Mech Assist

Optimise your storage space with a smooth operation


Eclipse

Affordable, high-density mobile storage

EclipseEclipse
Eclipse 2Eclipse 2
Eclipse 3Eclipse 3
Eclipse 4Eclipse 4
Eclipse 5Eclipse 5
Eclipse 6Eclipse 6

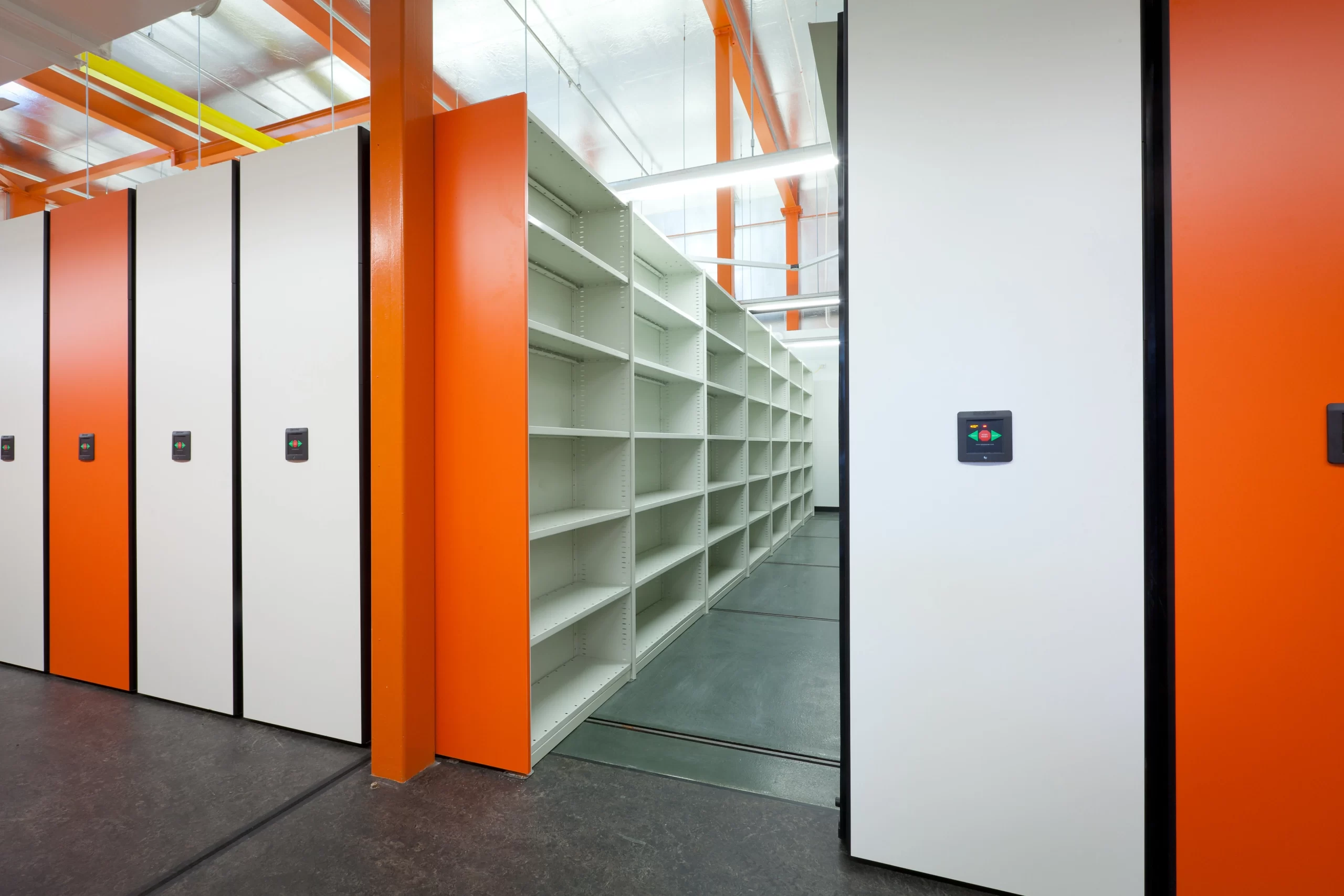

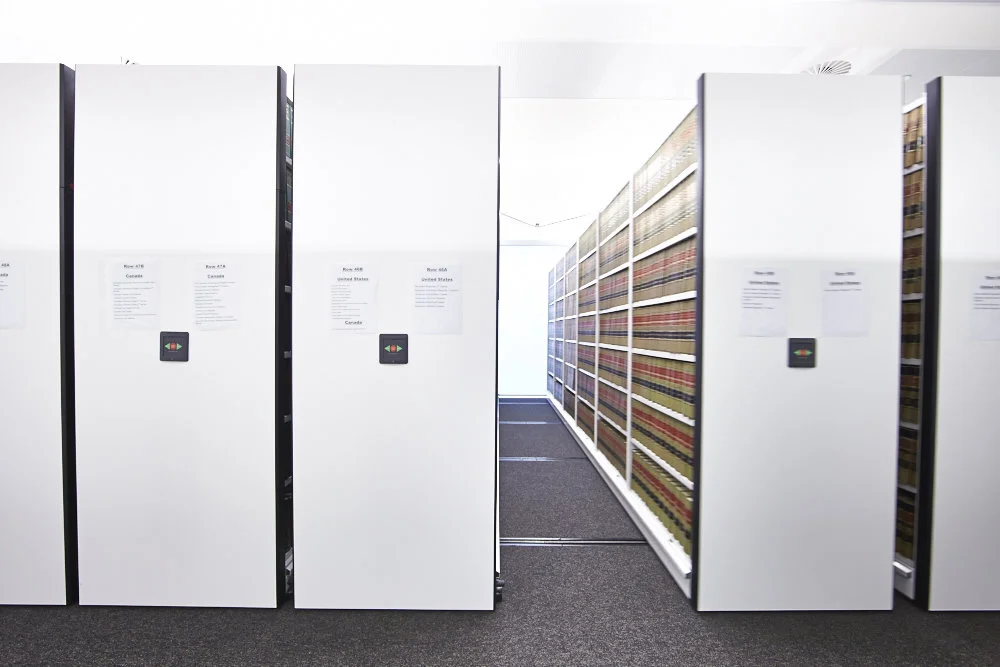

Eclipse

Affordable, high-density mobile storage

Enjoy the advantages of powered high-density mobile storage at an affordable price. The Dexion Eclipse has been designed for safety, ease of use, productivity and reliability – and best of all, it evolves with your needs. Access a broad range of features for guidance, control and safety, environmental monitoring, security, lighting and more.

  • The Eclipse carriages can be designed to take shelving, racking, cabinets, even non Dexion products can be fitted to the Eclipse carriages (ideal for re-use of existing shelving components).
  • Available in standard lengths up to 24.6m. Greater carriage lengths are possible, depending on system load factors.
  • Maximum load carrying capacity of 1,500kg per linear meter.
  • Standard carriages up to 1200mm depth (deeper carriages can be designed on request).
  • Unique in-track anti-tilt safety mechanism is superior to conventional overhead mechanisms. Eliminating obtrusive overhead bars. Designed for seismic conditions.

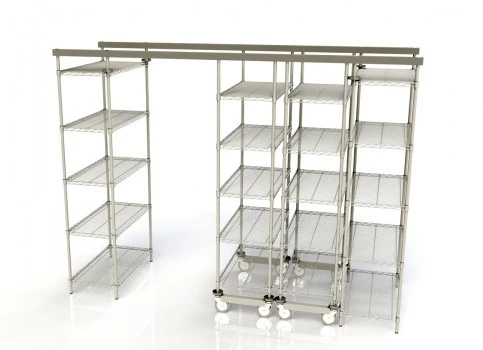

EasyFit Wire Compactus®

Designed specifically for clinical environments

Designed specifically for clinical environments, the EasyFit Wire Compactus range minimises the surface area that can harbour bacteria or dust and allows a constant airflow around your stored items.

The smart design extends to providing optimal storage density while retaining crucial accessibility to assist with stock flow.

It’s available in three finish options to suit your needs, including chrome, zinc-plated and stainless steel.



  • Designed to suit clinical environments.
  • Easy to clean.
  • Maximises storage capacity in the available floor space.
  • Greater accessibility to stock and stored items.
  • Better visibility to stored items.
  • Wide range of accessories.
  • Warranty ranges from 3 yrs to 10 yrs depending on the finish and application.

EasyFit Wire Compactus®

Designed specifically for clinical environments

Easyfit Wire CompactusEasyfit Wire Compactus
